STEIN SCORPIUS ACR-16 15m - 45m Climbing Line with Spliced Eye Termination

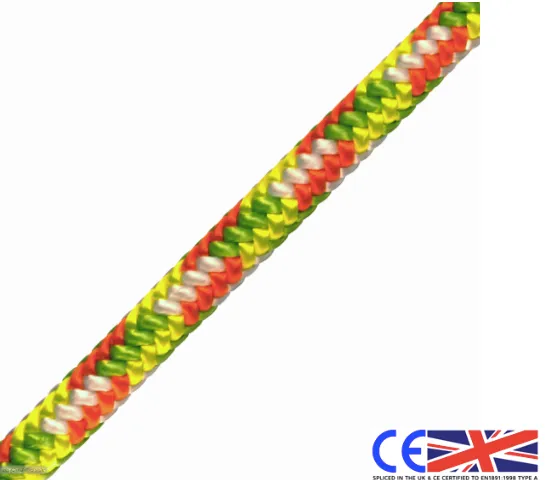

STEIN SCORPIUS ACR-16 is a 16-Strand low stretch Kernmantle climbing line with excellent knot-holding capability and fully spliceable.

SCORPIUS ACR-16 was designed as a traditional 16-strand climbing line with a diameter of 12.4mm. The durable 16 plait Polyester cover has an easy-grip supple feel whilst maintaining a maximum firmness; works exceptionally well with both traditional Friction Hitches and modern Mechanical Friction Devices used predominantly used in DRT climbing systems (double rope technique).

CE certified in the UK in accordance with EN1891 (Type “A”)

• 16-Strand Kernmantle Construction
• 12.4mm Diameter
• Easy-grip supple feel
• Excellent knot-holding capability
• Spliceable
• Excellent abrasion resistance
• Controlled Extension
• Protective coating
• Serial numbered terminations

Product Care:

Failure to follow the rope care guidelines issued with the rope outlining the correct use and care may give rise to a situation that could endanger the user’s life. The manufacturer cannot be liable for the abuse or misuse of safety equipment. All risk is the responsibility of the user. A copy of the rope care guidelines can be downloaded from our website (see download section)

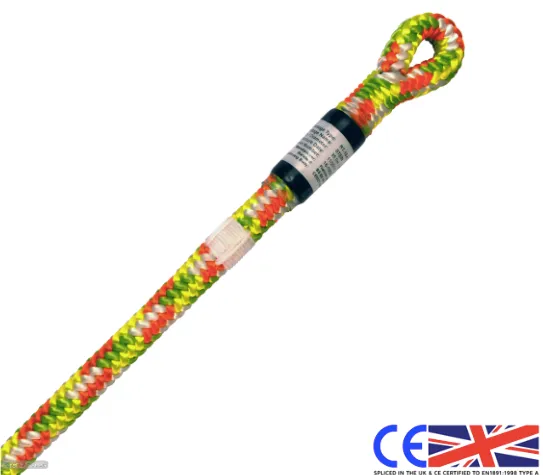

Spliced Eye Termination:

The Spliced Eye termination has been specifically designed to replace the need for creating a knotted termination in Low Stretch rope to which a connector can be attached. Low stretch lines are designed for use as general-purpose positioning, restraint & rescue lines. They are not for use in a personal fall arrest system and should always be used in conjunction with ascending, descending and safety hardware and devices for positioning work meeting relevant CE Standards.

Before Use:

Before use, a detailed risk assessment must be carried out by a competent person to establish that this is the correct product suitable for the type of work being undertaken; your anchor point conforms to industry standards and meets the requirements of CE EN795 (B), potential fall distance, obstructions, and rescue systems have been addressed. Purchasers and users should seek professional training from a fully qualified and competent instructor prior to engaging in any activity using this equipment. If you are not able, or not in a position to assume this responsibility, do not use this product. The manufacturer its distributors and retailers do not accept any liability if users do not follow the instructions correctly. Prior to each use a complete risk assessment must be carried out to ascertain that this product configures with and is appropriate to the work being undertaken.

Product Standard:

This product has been independently tested and certified to the BS EN1891:1998 Standard in accordance with section 4.12.2 Static strength with terminations. Type A rope terminations are required to sustain a minimum force of 15kN for a minimum period of 3 minutes. (Tested in accordance with section 5.10 of the BS EN1891:1998 standard)

EU DECLARATION OF CONFORMITY

The products referred to in the User Manual are classed as Personal Protective Equipment (PPE) by the European PPE Regulation (EU) 2016/425 and have been shown to comply with this Regulation through the Harmonised European Standard. The manufacturer herewith declares that this product is in conformity with the provisions of the following directives:

BS EN1891:1998 Standard in accordance with section - 4.12.2 Static strength with terminations.

SATRA Technology Centre, Clonee, D15 YN2P, Ireland (Notified Body 2777 & Module C2 Assessment)

Manufacturer or authorized representative:

Fletcher Stewart (Stockport) Ltd, Unit 8E, Newby Road Industrial Estate, Hazel Grove, Stockport, Cheshire, SK7 5DA, UK
