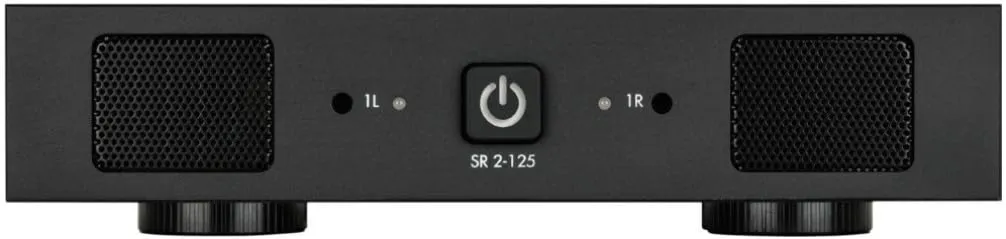

Sonance 93135 Model SR 2-125 (LEGACY) 2 Channel Sonamp DSP Power Amplifier, Black, Frequency Response 5Hz - 50kHz, Compact Form Factor, Convection Cooled/Fanless Design, Terminal Blocks
The SR 2-125 Amplifier is purpose built to be the ideal companion for the SONARRAY SR1 satellite and subwoofer system. The SR 2-125 is a 125-watt stereo amplifier with DSP presets easily accessed through dials on the back of the amplifier.
Key Features
- Powerful, audiophile grade Class-D amplification, rated and certified at 8 and 4 ohms & stable to 2 ohms
- Compact form factor allows for space savings in the equipment rack with ample power to the speakers
- Convection cooled, fanless design allows for direct stacking with no air gap for even greater power density
- Class-D design is 93% efficient for maximum power output with minimal power usage Meets EU power saving standards
- Terminal blocks will accept up to 12AWG speaker cable for longer runs and higher performance
- Full array of input/output connectivity for maximum installation flexibility: line inputs, loop outputs, audio & voltage triggers, (2) Buss input/output, independent volume control per channel
- Bridgeable channels for applications when even more power is required
- Certified to worldwide safety standards (TUV, RCM, CE). Meets FCC standards
- Rack ears and removable feet included
Specifications
- Number of Channels: 2 (1 Stereo Pair)
- Output Power - 8 Ohms: 125 Watts (2 channels driven)
- Output Power - 4 Ohms: 200 Watts (2 channels driven)
- Frequency Response: 5Hz - 50kHz
- Operating Voltage: 100-120V@60Hz, 220-240V@50Hz
- Rack Space Required: 1U - 1/2 Rack Width
- Dimensions With Feet (WxHxD): 8 5/8" x 2 1/8" x 16 13/16"
- Rack Mounted Dimensions (WxHxD): 8 5/8" x 1 3/4" x 16 13/16"
- Shipping Weight: 11 lbs
- Is Discontinued By Manufacturer : No
- Product Dimensions : 16.8 x 8.6 x 2.1 inches; 10.6 Pounds
- Date First Available : April 16, 2019
- Manufacturer : Sonance
