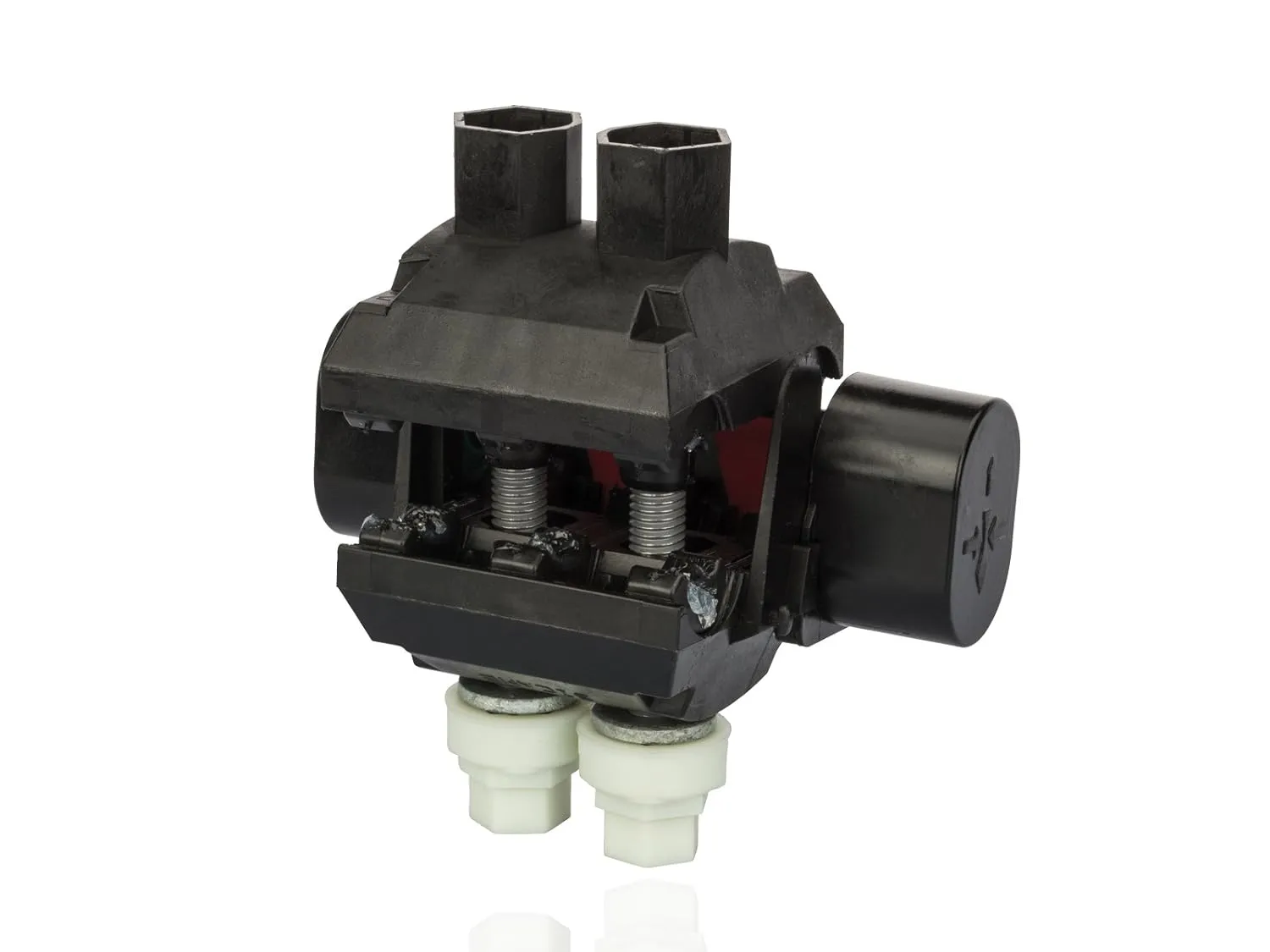

NSI IPCS series Easy-Tap insulation piercing connector. Safe to use. No need to strip wire. Totally insulated. No tape or cover needed. No contact at any point with a live part. Can be installed on energized conductors. Versatile. Reliable. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. No need for a third hand to install. Watertight, corrosion-free. Connection sealed by a rubber grommet. No migration of water. No contamination between main and tap. Connectors handle a large wire range of #14 awg to 750 MCM. double shear-head bolts ensure perfect connection every time. hot spots eliminated. can be used as a splice or a tap. easy to install. no special tools required. for copper-to-copper, copper-to- aluminum and aluminum-to-aluminum applications. suitable for solid and/or stranded wires. This connectors come with a blue insert which re-creates the insulation and avoids any damage to the conductor. UL486B listed. Meets ANSI CI 19.4 requirements. 600 Volt, 90 degrees C Rated. Competitively priced. Always in stock. Number of Bolts: 2. 570 CU amp current rating. 445 AL amp current rating. Cannot be used with bare wire.

• Package Dimensions ‏ : ‎ 11.1 x 6.22 x 2.87 inches; 1.17 Pounds
• Date First Available ‏ : ‎ May 17, 2013
• Manufacturer ‏ : ‎ NSi Industries
• Country of Origin ‏ : ‎ USA
