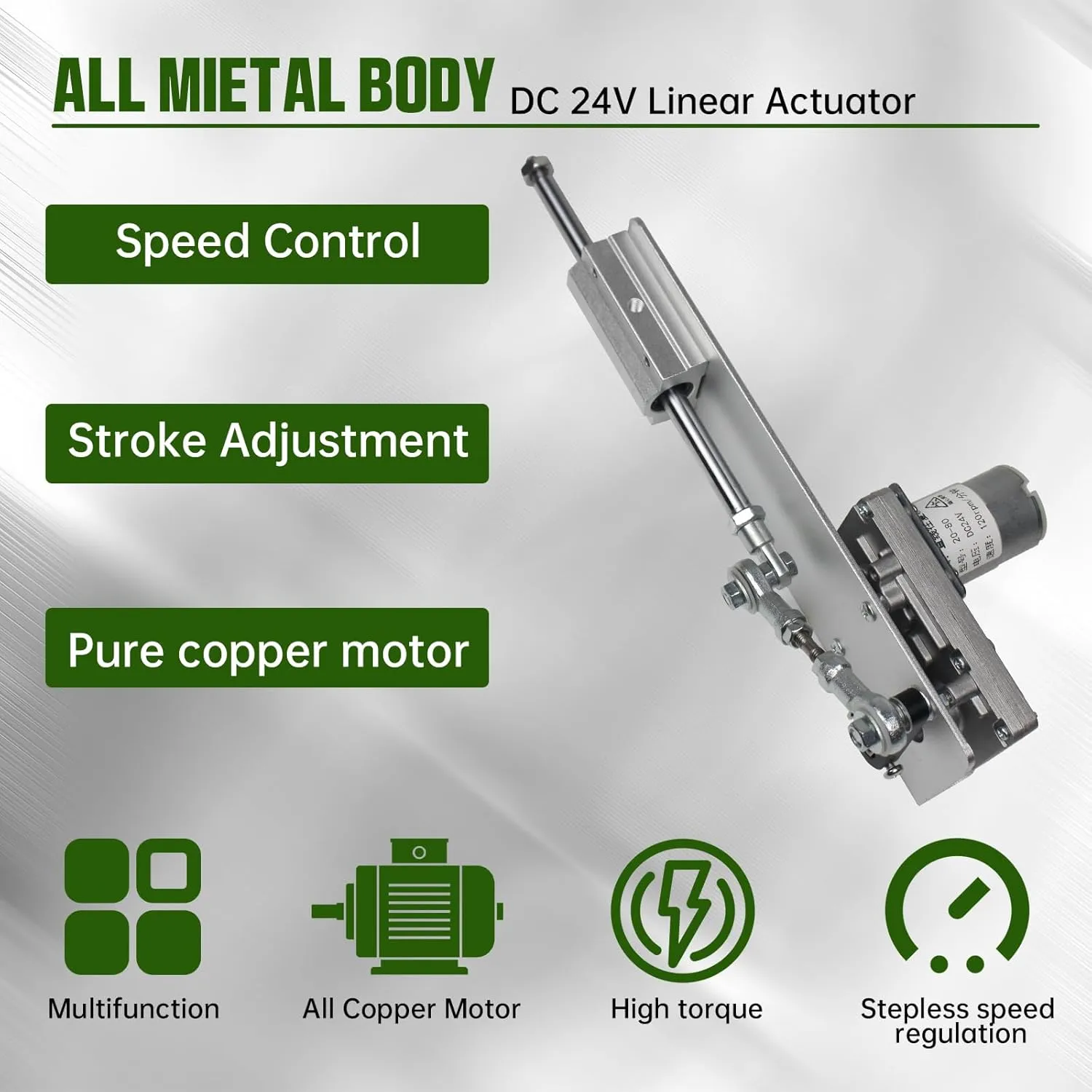

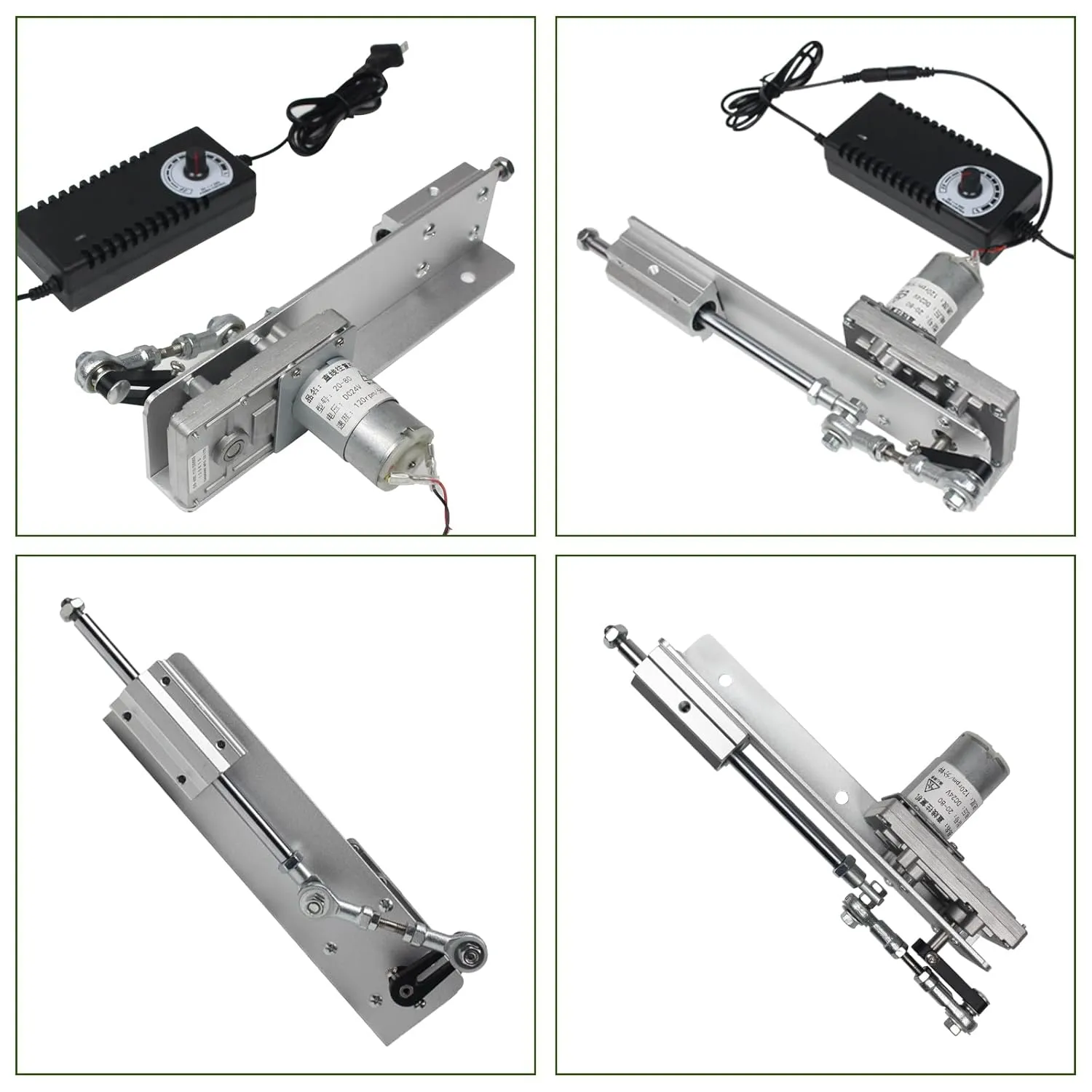

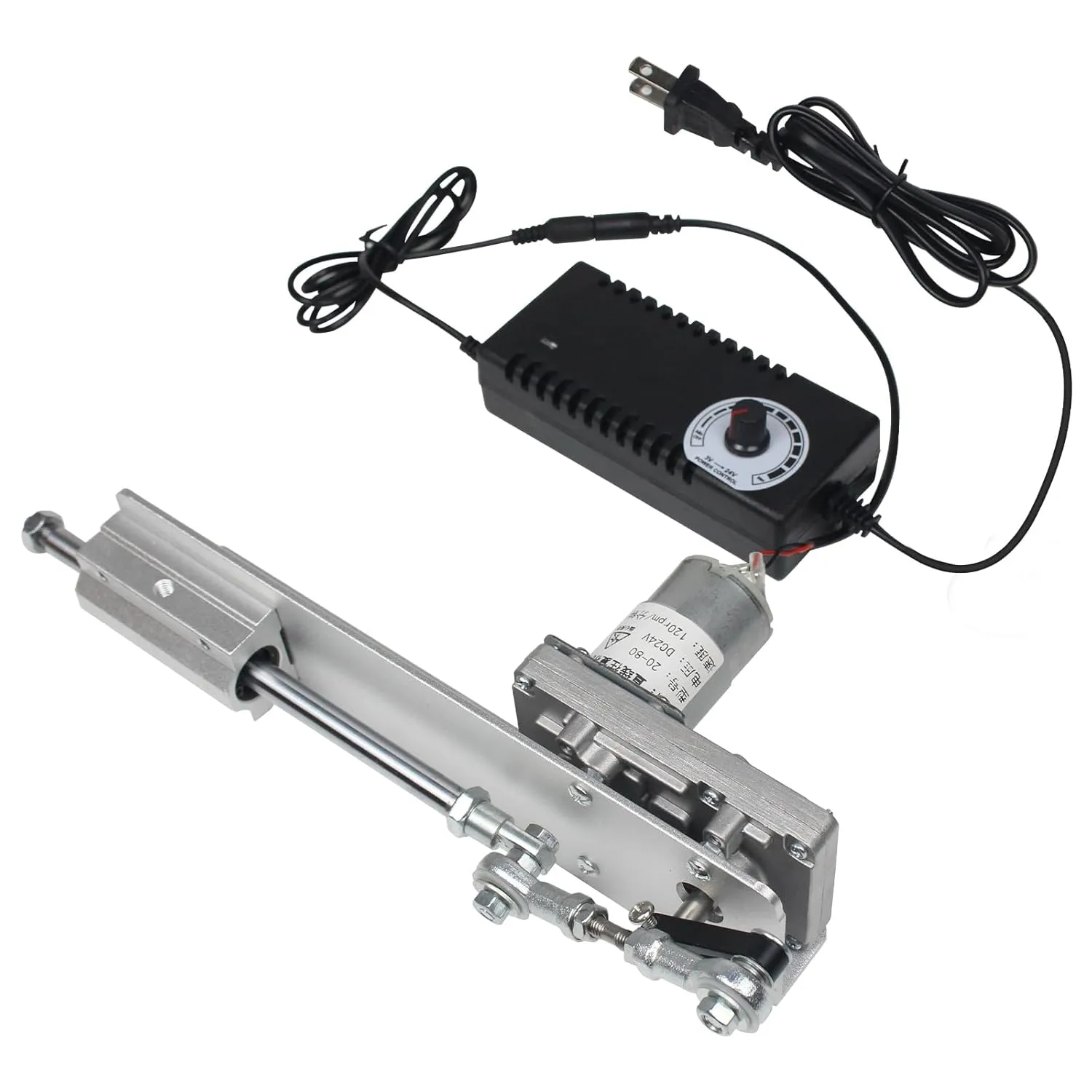

• Reciprocating Linear Actuator: The reciprocating mechanism includes a geared motor,an adjustable speed power supply,and a reciprocating mechanism.The device is already installed,plug and play.Input voltage: AC100-240V,50Hz/60Hz; Working voltage: DC24V

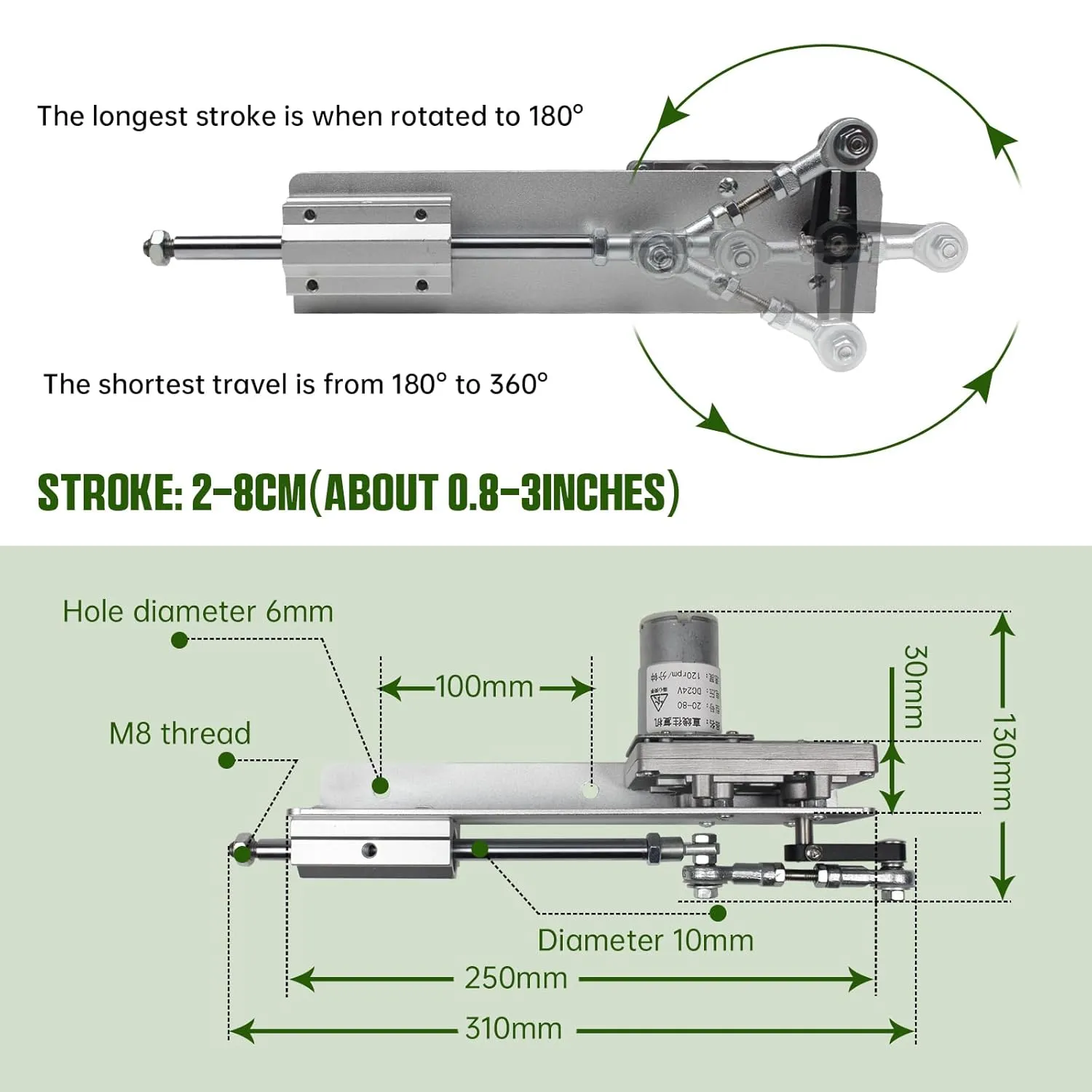

• Infinitely adjustment of stroke: Working voltage: DC 24V; Stroke range: 2-8cm/0.8"-3" and within this range,the telescopic stroke can be infinitely adjusted

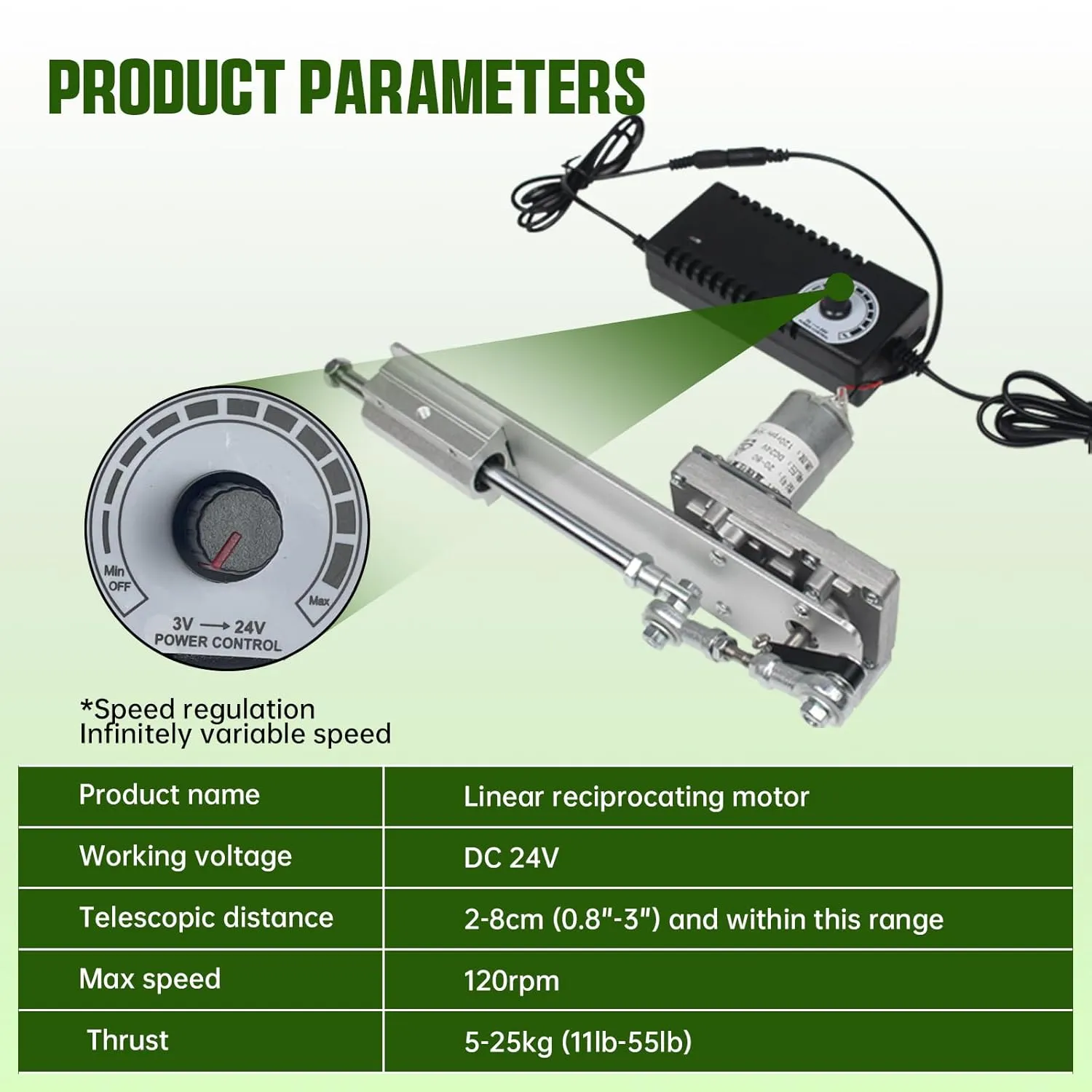

• Speed and Thrust: Max speed: 120rpm; This means that at 24V voltage,the fastest stretching speed can be 120 times per minute; Thrust: 5-25kg/11lb-55lb;The push-pull force is mainly powered by the motor.The smaller the stroke,the greater the thrust

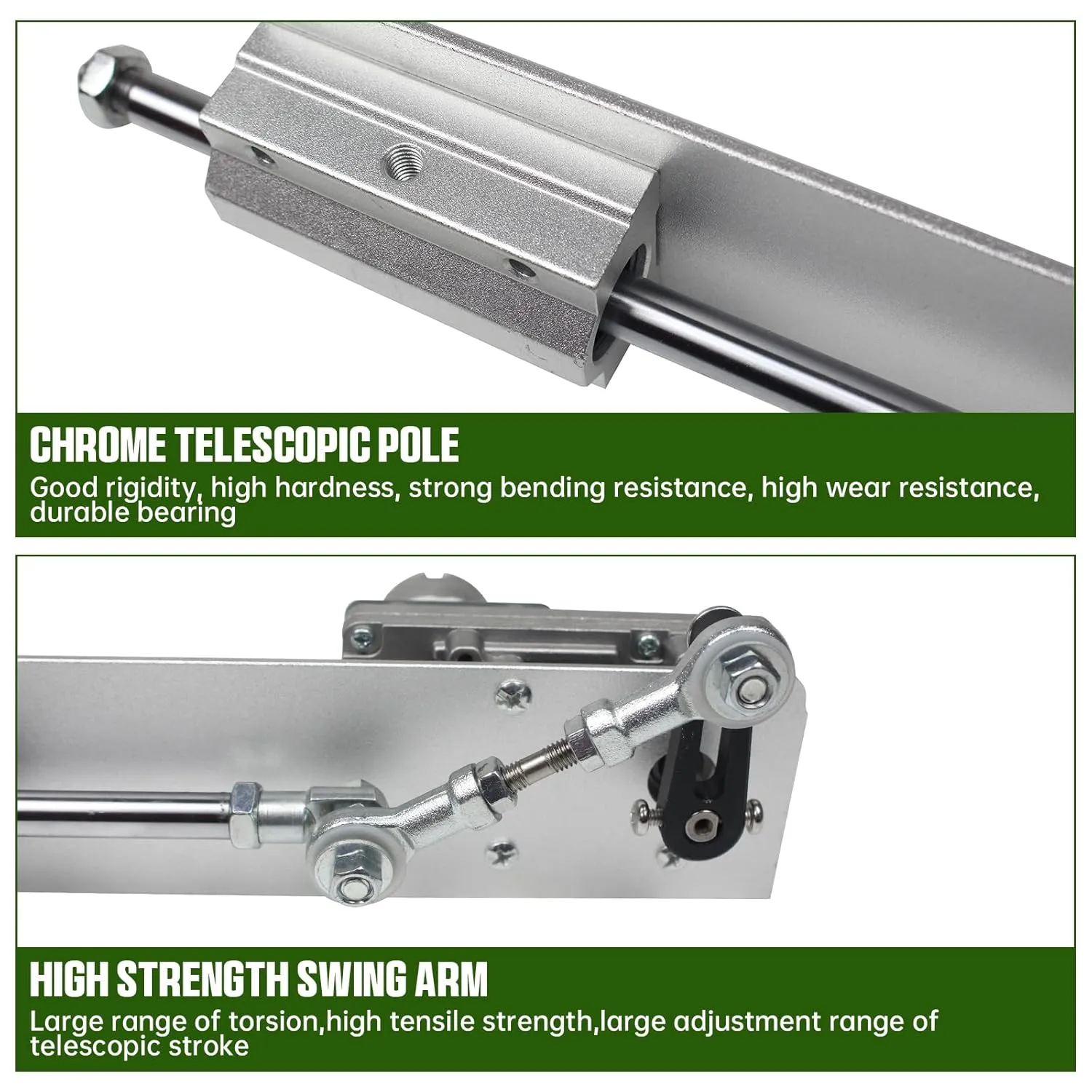

• High quality materials: Aluminum alloy material,compact structure design;Chromium plated telescopic tube with high stiffness, high hardness, and good bending resistance, equipped with high wear-resistant bearings, durable, high-strength and large torque range swing arm, high tensile strength, wide adjustable range of telescopic stroke, strong motor horsepower, providing stability

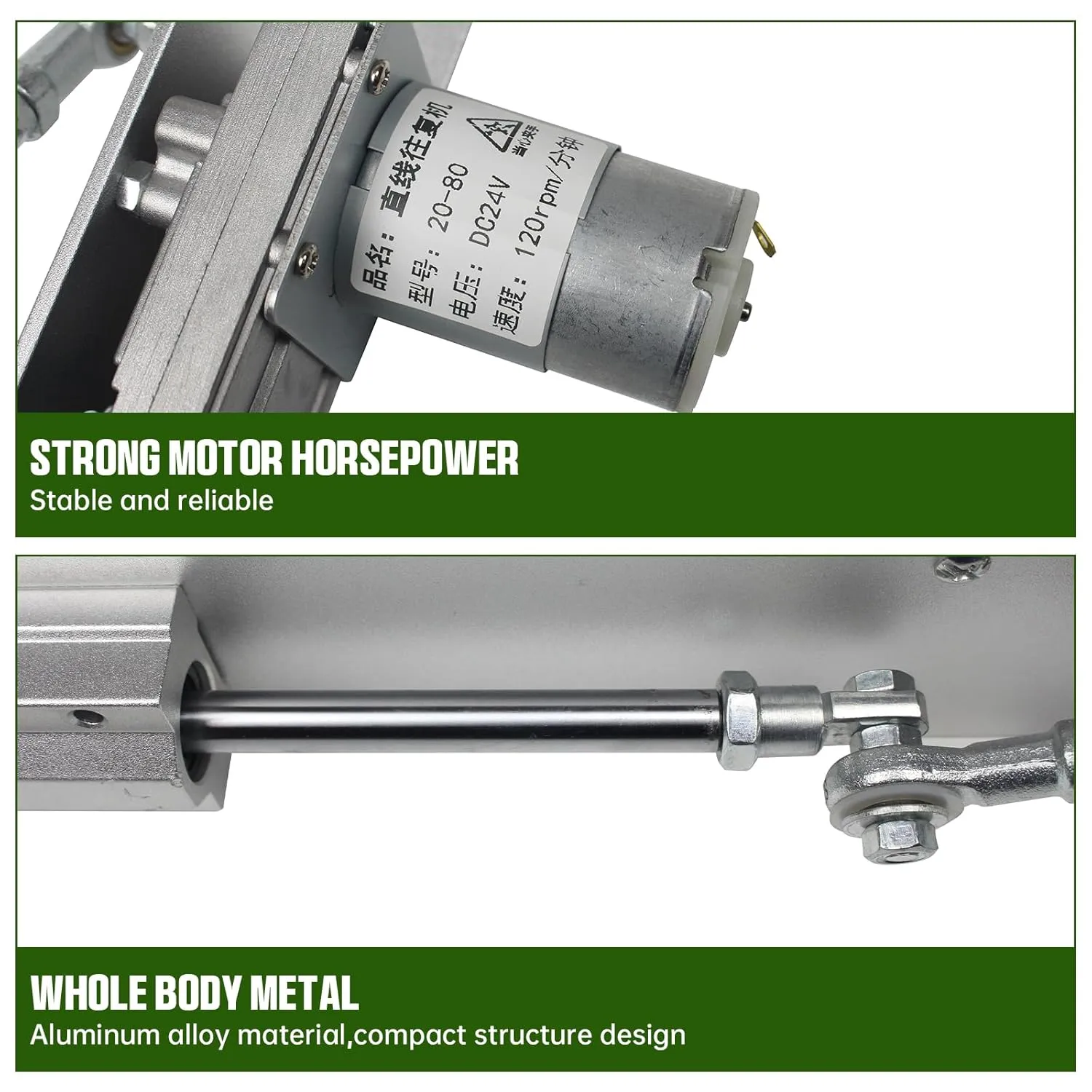

• DC gear motor: 24VDC,adjustable speed of up to 120 revolutions per minute,maximum torque of 25kg/cm,hole spacing of 50x50mm,shaft diameter of 8mm,weight of 0.5kg/1.1lb, rated current of 0.6A,length and width of 60x102mm/2.36 "x4"; Adopting high-quality pure copper wire motor and integrated heat treatment gearbox, with low heat generation, sufficient power, multi-level reduction, metal gears, greater strength, and longer lifespan

• Package Dimensions ‏ : ‎ 12.76 x 8.15 x 4.02 inches; 3.15 Pounds
• Date First Available ‏ : ‎ October 13, 2023
• Manufacturer ‏ : ‎ CNCTOPBAOS
